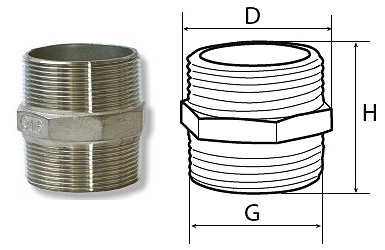

Stainless Steel AISI 316 Normal Nipples

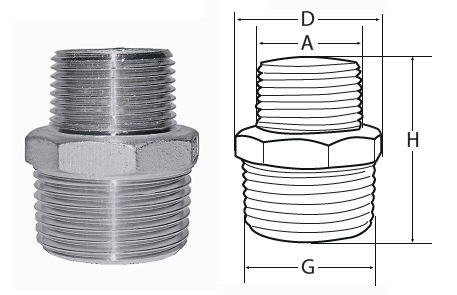

Stainless Steel AISI 316 Reduced Nipples
Available items and sizes
Item # | G(*)
| D | H |
| 138.0010 | ¼" | 14,5 | 25 |
| 138.0020 | ⅜" | 17,5 | 28 |
| 138.0030 | ½" | 22,5 | 37 |
| 138.0040 | ¾" | 28 | 41 |
| 138.0050 | 1" | 38 | 45 |
| 138.0060 | 1.¼" | 43 | 50 |
| 138.0070 | 1.½" | 50 | 53 |
| 138.0080 | 2" | 63 | 67 |
| 138.0090 | 2.½" | 77 | 72 |
| 138.0100 | 3" | 91 | 77 |
| 138.0110 | 4" | 116 | 83 |
Available items and sizes
Item # | G (*) | A | D | H |
| 1190.0301 | ½" | ¼" | 22 | 32 |
| 1190.0302 | ½" | ⅜" | 22,5 | 32,4 |
| 1190.0401 | ¾" | ¼" | 28 | 32,8 |
| 1190.0402 | ¾" | ½" | 28,4 | 37,8 |
| 1190.0501 | 1" | ½" | 34,5 | 40,3 |
| 1190.0502 | 1" | ¾" | 35,2 | 41,9 |
| 1190.0601 | 1.¼" | ½" | 44,2 | 43 |
| 1190.0602 | 1.¼" | 1" | 44 | 46.6 |
| 1190.0701 | 1.½" | 1" | 48,9 | 60,2 |
| 1190.0702 | 1.½" | 1.¼" | 50 | 61,9 |
| 1190.0801 | 2" | 1" | 62 | 70,6 |
| 1190.0802 | 2" | 1.¼" | 61,9 | 71,3 |
| 1190.0803 | 2" | 1.½" | 62 | 73,5 |
