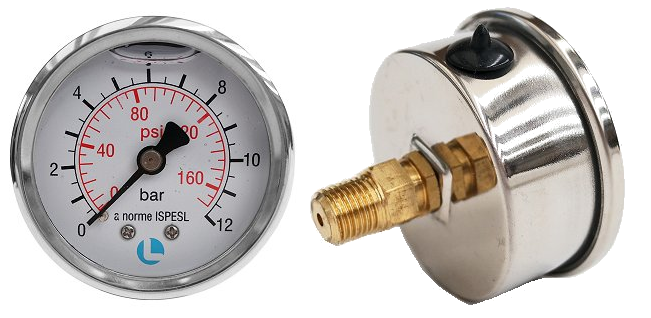

Glycerine Filled, Full Stainless Steel, Back fitting


PRESSURE GAUGES

Bourdon spring pressure gauge. Brass mechanism and stainless steel casing.Glycerine filled pressure gauges with stainless steel casing and brass connection for a very precise pressure survey.
Pressure gauges are available, upon request, for pressures not indicated in the table.
On request more diameters and connections are available

Technical features:

  • Bourdon spring: Stainless Steel
  • Case: Stainless Steel
  • Dial: white enameled aluminum, double scale black and red
  • Pointer: black enameled aluminum
  • Window: polycarbonate
  • Connections: back
  • Diameter connection G¼” 50 mm and 63 mm BSPT, NPT
  • Diameter connection G½” 100 mm and 63 mm BSPT, NPT


Available Items

      ⌀ 50 Back fitting 1/4"
D = ¼";  P = mm 46;
G = mm 50;  H = mm 50.

Item #

Kind

Bar range

PSI range

655.0506 MR60-60-87
655.0512MR120-120-174

⌀ 63  Radial fitting 1/4
D = ¼";  P = mm 46;
G = mm 63;  H = mm 63.

Item #

Kind

BAr range

PSI range

655.0606 MR60-60-87
655.0612MR120-120-174
 655.0616MR160-160-232
 655.0625MR250-250-362
