SUPER BIG 20" Filters and spare parts
SUPERBIG 20" FILTERS
SUPER BIG 20" - Sizes
| A | D | H |
| G ¾" | 130 mm | 585 mm |
| G 1" | 130 mm | 585 mm |
| G 1.¼" | 130 mm | 573 mm |
| G 1.½" | 130 mm | 573 mm |
SUPERBIG 20" Filters
SUPER BIG is a 20" high cartridge filter that can be applied industrially when there is a need to filter considerable amounts of water.
Due to the double filtering surface area of the cartridges, the filter's effective life is appreciably lengthened, thereby also thinning out maintenance work.
Do not Install filters using green paste.
Use Teflon exclusively.
Due to the double filtering surface area of the cartridges, the filter's effective life is appreciably lengthened, thereby also thinning out maintenance work.
Do not Install filters using green paste.
Use Teflon exclusively.
Capacity without cartridge
| Ø 1" | 3500 lt/h | |
| Ø 1.¼" | 5200 lt/h | |
| Ø 1.½" | 6000 lt/h | |
Spare parts for SUPER BIG 20" filter
Empty
cartridge
Item # 520.2000
Connection ¾", 1"
Item # 520.2010
Connection1.¼", 1.½"
Read more
Plastic
mesh
Item # 512.2000
60μ. Connection ¾", 1"
Item # 512.2010
60μ. Connection 1.¼", 1.½"
Read more
Wound
thread
Item # 511.2001 (5 μ)
Item # 511.2000 (25 μ)
Read more
Stainless
steel
Item # 517.2000
Connection ¾", 1"
Connection ¾", 1"
Read more

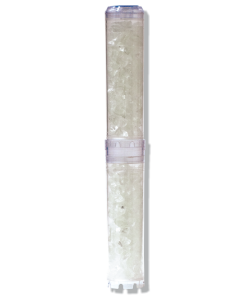

Polyphosphate
cartridge
Item # 514.2000
Connection ¾", 1"
Item # 514.2010
Connection 1.¼", 1.½"
Read more
SAN made
vase
Item # 532.0000
Head
Item # 530.1040
Connection ¾"
Item # 530.1050
Connection 1"
Item # 530.1060
Connection 1.¼"
Item # 530.1070
Connection1.½"
Ring
Item # 531.1000
Safety
valve
Item # 550.0000
Connection 1/4"
Spanner
Item # 535.1000
O-ring
Item # 542.1000
mm. 88,27 x 5,33
